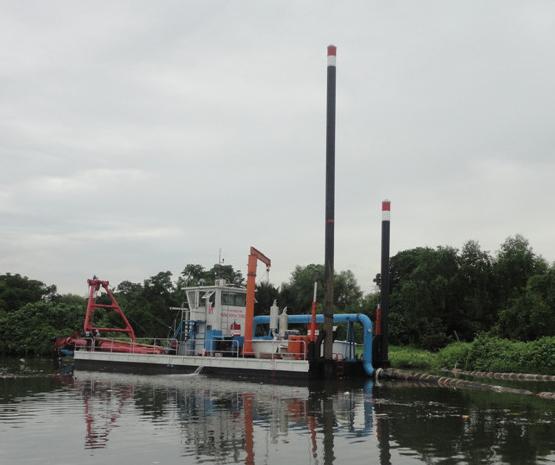

24 inch Cutter Suction Dredger

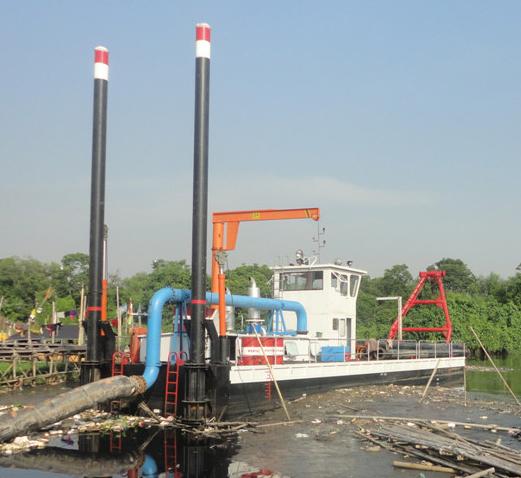

CSD-600 Cutter Suction Dredger

1.Model:CSD-600

2.Type:Cutter Suction Dredger

3.Main dimensions:

a.Length overall:42.0m

b.Breadth:9.0m

c.Depth:2.8m

d.Draft loaded:1.8m

4.Max.dredge depth:20.0m

5.Diameter of suction pipe:800mm

6.Diameter of discharge pipe:750mm

7.Discharge distance:3500m

8.Water flow:5000m3/h

9.Dredging pump

a.Model:WN600

b.Shaft power:1840kw

10.Cutter head

a.Type:Crown

b.Drive type:Hydraulic

d.Diameter:2450mm

c.Cutter shaft power:500kw

d.Max. speed:35rpm

e.Wearing parts on cutting edges:Replaceable alloy teeth

11.Engine

a.Brand:JICHAI

b.Model:H16V190ZLC

c.Power and RPM:2400KW@1500RPM

12.Spuds

a.Diameter:700mm

b.Thickness:30mm

c.Length:25m

d.Weight:10.2t

e.Drive type:Hydraulic ram(200KN@3.1m)

13.Winches(Ladder winch/Swing winch)

a.Line pull,1st layer:200KN

b.Max.Line speed:20m/min

c.Wire diameter:28mm

d.Drum diameter:650m

14.Deck crane:2.5t@3.8m

15.Feature and advantage:Can be disassemble and assemble,easy to transport.



NOTE:Dredgers can be customized according to your requirements.
