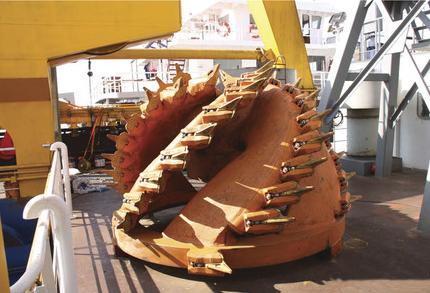

26-28 Inch Dredge Cutter Head

Dredge cutter head types:
1.Rock cutter heads
2.Sand cutter heads
3.Slurry cutter heads
4.Mud cutter heads
5.Gravel cutter head
6.Multi-service cutter heads

Dredge cutter head features:
1.Number of blade:5 or 6.
2.The cutter head have replaceable dredge teeth.
3.The dredge cutter head have many applications,can be used for rock,mud,slurry,sand and gravel.
4.The superiority of the Rock Cutter Head is the result of unmatched design and metallurgical capabilities.
5.Refined tooth and cutting edge design.
6.Competitive maintenance cost,easy to maintenance.
7.Exceptional wear resistance,high quality.
8.The cutter head can be supplied with shaft,bearing and gearbox.
9.The cutter head has low spill.

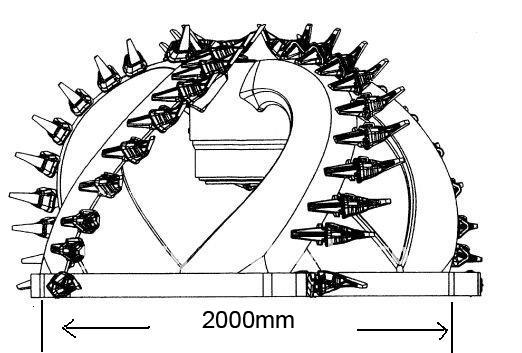

26-28 inch dredge cutter head specifications:

Inner ring dia.(mm)	No. Of blade	Speed (rpm)	Output torque(KN-m)	Max shaftpower(Kw)	Suction dia.(mm)	Capacity(m3/h)	Water overflow of pump(m3/h)
2000	5	0-30	175	550	650-700	1800	6000-6500

NOTE:
1. We can supply the cutter heads and tooth systems for cutter powers of 35 kW up to 6000 kW.
2. Providing various of dredge cutter heads, customization is available.
