Application

Dredging dredger reamer teeth are mainly used on dredgers for dredging construction in rivers, rivers, ports, etc., and are primarily responsible for the excavation of silt and gravel. Under the conditions of complex abrasive wear conditions, the annual consumption of wear parts is quite remarkable. Because the reamer teeth work underwater, the working conditions are quite complex, requiring that the reamer teeth have high tensile strength and service strength, high hardness and sufficient toughness. Different soil types demand different forms of penetration. Specific teeth are available for each soil type and all of the following fit the same adaptor:

• flared chisels are used for peat, sand and soft clay
• narrow chisels are applied in packed sand and firm clay
• teeth with pick points are used for rock.

---

Features

1. The unique male teeth design and easy locking system.
2. The unique alloy, in which a composite insert is placed to reinforce the working tip of the tooth.
3. Self-sharpening of the tooth, better ground penetration, and increased production.
4. Increased lifetime, decreased frequency and duration of maintenance.
5. Advance investment casting technology for producing with low cost.
6. Our dedicated heat treatment process finally extracts the maximum mechanical performance out of the carefully cast and forged complex alloys.
7. Can be customized according to your requirements or can provide OEM services.

---

Specification

■  30-CB Serial
No.	P/No.	Length（mm）	Width (mm)	Weight（Kg）	Remark
1	30-CB-F2	320	142	12.7	Flare Teeth
2	30-CB-N	320	48	9.7	Chisel Teeth
3	30-CB-P	325	18	9.0	Pick Teeth
4	30-LP x2	112	32	0.2	Pin
No.	P/No.	Length (mm)	Weight（Kg）		Remark
5	30-CB-ACR	296	17.8		ACR Adapter
6	30-CB-AWN2	192	10.0		AWN2 Ring Seat
7	30-CB-AE	156	3.4		Wear Block

---

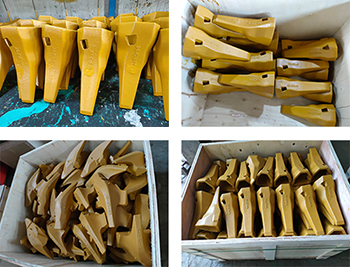

Packing Image of 30-CB Serial Dredge Cutter Teeth
