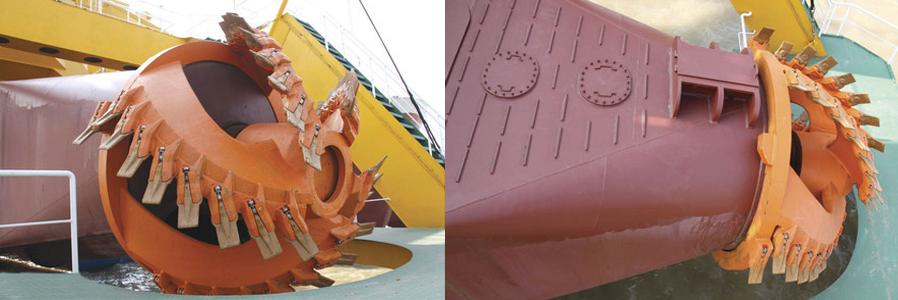

36-38 Inch Dredge Cutter Head

---

Dredge cutter head types:
1.Rock cutter heads
2.Sand cutter heads
3.Slurry cutter heads
4.Mud cutter heads
5.Gravel cutter head
6.Multi-service cutter heads

---

Dredge cutter head features:
1.Number of blade:5 or 6.
2.The cutter head have replaceable dredge teeth.
3.The dredge cutter head have many applications,can be used for rock,mud,slurry,sand and gravel.
4.The superiority of the Rock Cutter Head is the result of unmatched design and metallurgical capabilities.
5.Refined tooth and cutting edge design.
6.Competitive maintenance cost,easy to maintenance.
7.Exceptional wear resistance,high quality.
8.The cutter head can be supplied with shaft,bearing and gearbox.
9.The cutter head has low spill.

---

36-38 inch dredge cutter head specifications:

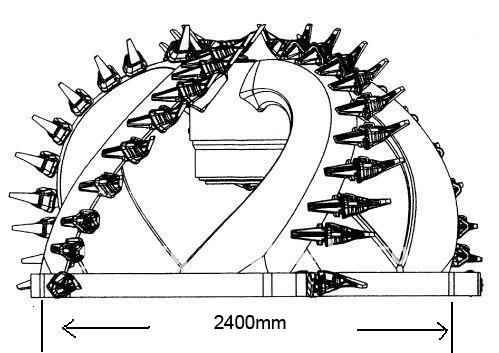

Inner ring dia.(mm)	No. Of  blade	Speed (rpm)	Output torque(KN-m)	Max shaftpower(Kw)	Suction dia.(mm)	Capacity(m3/h)	Water overflow of pump(m3/h)
2400	6	0-30	446	1400	900-950	4500	14000-16000

---

---

NOTE:
1. We can supply the cutter heads and tooth systems for cutter powers of 35 kW up to 6000 kW.
2. Providing various of dredge cutter heads, customization is available.
